Surge Protector
NYKU1-I series Class T1 (15-50KA)
NYKU1 series Class T2 (10-160KA)
Concise
Efficient
Safe
Comprehensive
PRODUCT OVERVIEW

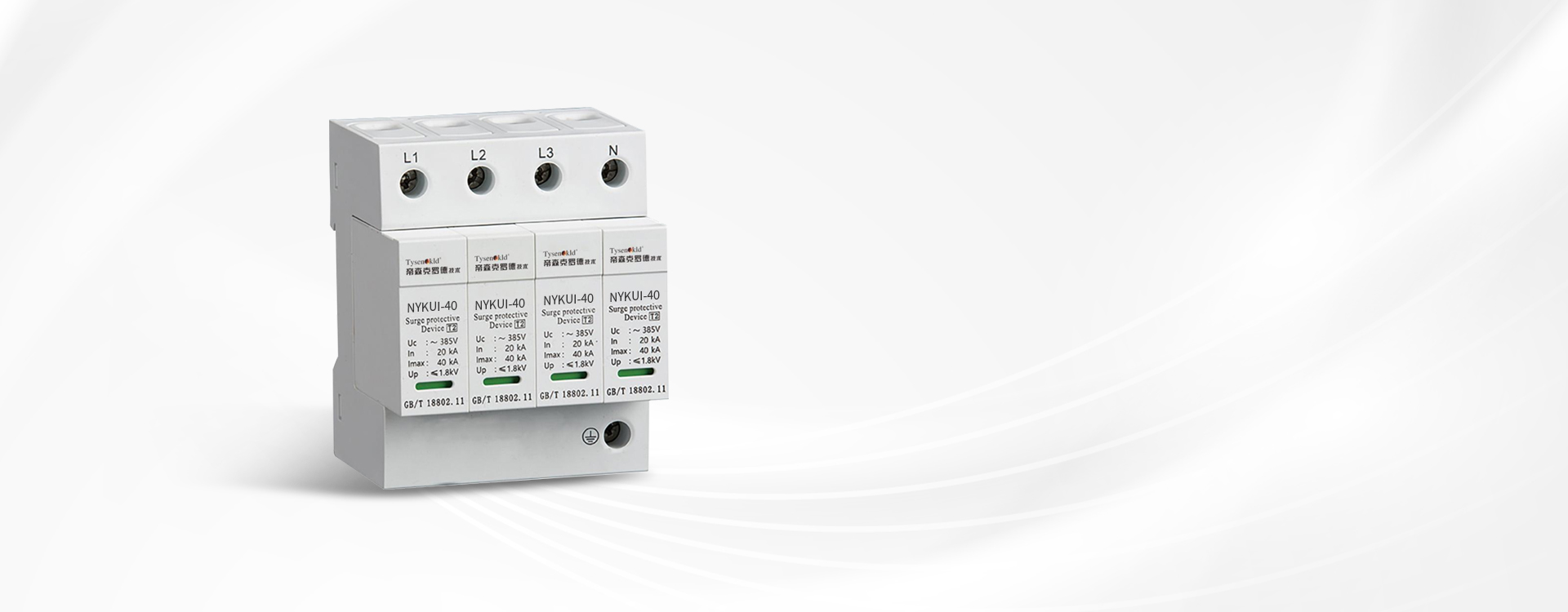

NYKU1 series surge protector, also known as lightning protector, is an electrical component capable of suppressing transient overvoltage and lightning strikes. It is mainly installed in circuits to protect electronic equipment from overvoltage and overcurrent.
PRODUCT CHARACTERISTICS
Fast response
Surge protectors are able to react in a very short time (nanoseconds) to ensure that voltage surges are blocked or attenuated before they damage the equipment.
Low residual voltage,
high withstand voltage
It’s conducive to prevent electrical fires caused by excessive voltage by limiting voltage spikes.
High-energy contacts
for long service life
Frequent voltage fluctuations can gradually damage the internal components of load electronic equipment, and surge protectors can minimize the damage and extend the service life of the equipment.
Small size, full range
of specification, easy to use
Modular module meets the mounting requirements of general 35mm guide rail, which is easy to use and maintain.
Technical Parameters
NYKU1-I Series Surge Protector Technical Parameters
| Main characteristics | |||||||||||||||
| Execution standard | GB/T18802.11/IEC61643-11 | ||||||||||||||
| Rated operating voltage Un | 230V/400V | ||||||||||||||
| Number of poles | 1P、 2P、 3P、 4P | ||||||||||||||
| Experimental type | Class I （T1） | ||||||||||||||
| Waveform | 10/350us | ||||||||||||||
| Model | NYKU1-I 15kA | NYKU1-I 25kA | NYKU1-I 50kA | ||||||||||||
| Impulse current limp | 15kA | 25kA | 50kA | ||||||||||||
| Nominal discharge current In | 50kA | 50kA | 50kA | ||||||||||||
| Response time Ta | ≤100ns | ≤100ns | ≤100ns | ||||||||||||
| Maximum continuous operating voltage Uc（V） | 275 | 320 | 385 | 440 | 460 | 275 | 320 | 385 | 440 | 460 | 275 | 320 | 385 | 440 | 460 |
| Voltage protection level Up（kV） | ≤1.5 | ≤1.6 | ≤2.0 | ≤2.2 | ≤2.5 | ≤1.8 | ≤2.0 | ≤2.2 | ≤2.4 | ≤2.5 | ≤2.3 | ≤2.5 | ≤2.5 | ≤3.0 | ≤3.2 |
NYKU1 Series Surge Protector Technical Parameters
| Main characteristics | ||||||||||||||||
| Execution standard | GB/T18802.11/IEC61643-11 | |||||||||||||||
| Rated operating voltage Un | 230V/400V | |||||||||||||||
| Number of poles | 1P、1P+N、2P、3P、3P+N、4P | |||||||||||||||
| Experimental type | Class II(T2) | |||||||||||||||
| Waveform | 8/20us | |||||||||||||||
| Model | NYKU1-I 10kA | NYKU1-I 20kA | NYKU1-I 40kA | NYKU1-I 60kA | ||||||||||||
| Maximum discharge current Imax | 10kA | 20kA | 40kA | 60kA | ||||||||||||
| Nominal discharge current In | 5kA | 10kA | 20kA | 30kA | ||||||||||||
| Response time Ta | ＜25ns | ＜25ns | ＜25ns | ＜25ns | ||||||||||||
| Maximum continuous operating voltage Uc（V） | 275 | 320 | 385 | 460 | 275 | 320 | 385 | 460 | 275 | 320 | 385 | 460 | 275 | 320 | 385 | 460 |
| Voltage protection level Up（kV） | ≤0.8 | ≤1.2 | ≤1.2 | ≤1.2 | ≤1.0 | ≤1.2 | ≤1.4 | ≤1.6 | ≤1.2 | ≤1.4 | ≤1.6 | ≤2.0 | ≤1.5 | ≤1.8 | ≤1.8 | ≤2.2 |
| Protection degree | IP20 | |||||||||||||||
| Ambient temperature limit | -40℃~80℃ | |||||||||||||||
| Installation method | 35mm standard electrical guide rail mounted | |||||||||||||||
| Casing color | Light grey | |||||||||||||||
NYKU1 Series Surge Protector Technical Parameters
| Main characteristics | ||||||||||
| Execution standard | GB/T18802.11/IEC61643-11 | |||||||||
| Rated operating voltage Un | 230V/400V | |||||||||
| Number of poles | 1P、1P+N、2P、3P、3P+N、4P | |||||||||
| Experimental type | Class II(T2) | |||||||||
| Waveform | 8/20us | |||||||||
| Model | NYKU1-I 80kA | NYKU1-I 100kA | NYKU1-I 120kA | NYKU1-I 160kA | ||||||
| Maximum discharge current Imax | 80kA | 100kA | 120kA | 160kA | ||||||
| Nominal discharge current In | 40kA | 50kA | 60kA | 80kA | ||||||
| Response time Ta | ＜25ns | ＜25ns | ＜25ns | ＜25ns | ||||||
| Maximum continuous operating voltage Uc（V） | 275 | 320 | 385 | 460 | 385 | 420 | 385 | 420 | 385 | 420 |
| Voltage protection level Up（kV） | ≤0.8 | ≤1.2 | ≤1.2 | ≤1.2 | ≤2.4 | ≤2.5 | ≤2.5 | ≤2.65 | ≤3.0 | ≤3.2 |
| Protection degree | IP20 | |||||||||
| Ambient temperature limit | -40℃~80℃ | |||||||||
| Installation method | 35mm standard electrical guide rail mounted | |||||||||
| Casing color | Light grey | |||||||||
Selection table
NYKU1-I Series Surge Protector
| NYKU1 | I | 15kA | 4P | 385V | Additional features |
| Product code | Use category | Maximum impulse current | Number of poles | Maximum operating voltage | Additional features |
| NYKU1： Surge Protector |
I:Class T1 | 15kA 25kA 50kA |
1P:1 pole 2P:2 pole 3P:3 pole 4P:4 pole |
275V 320V 385V 440V 460V |
X:Remote signaling |
Note:NYKU1-I series conventional discharge components are graphite clearance, of which NYKU1-I-15 can be made into two types of discharge components: chip and graphite.
Remote signaling function is optional for chip type, but not for stands for type. X means remote signaling function, C stands for chip.
NYKU1 Series Surge Protector
| NYKU1 | 40kA | 4P | 385V | Additional features |
| Product code | Maximum discharge current | Number of poles | Maximum operating voltage | Additional features |
| NYKU1： Surge Protector |
10kA 20kA 40kA 60kA 80kA 100kA 120kA 160kA | 1P:1 pole 1PN:1 pole+N 2P:2 pole 3P:3 pole 3PN:3 pole+N 4P:4 pole |
275V 320V 385V 460V |
X:Remote signaling |
Technical Parameters
-
Execution standard：GB/T18802.11/IEC61643-11
Rated operating voltage Un：230V/400V
Number of poles：1P、2P、3P、4P
Experimental type：Class I （T1）
Waveform：10/350us
Model：NYKU1-I 15kA/NYKU1-I 25kA/NYKU1-I 50kA
Impulse current limp：15kA/25kA/50kA
Nominal discharge current In：50kA
Response time Ta：≤100ms
Maximum continuous operating voltage Uc（V）：275、320、385、440、460
Voltage protection level Up（kV）：≤1.5(275V)、≤1.6(320V) 、≤2.0(385V) 、≤2.2(440V) 、≤2.5(460V) /≤1.8(275V) 、≤2.0(320V) 、≤2.2(385V) 、≤2.4(440V) 、≤2.5(460V) /≤2.3(275V) 、≤2.5(320V) 、≤2.5(385V) 、≤3.0(440V) 、≤3.2(460V)
-
Execution standard：GB/T18802.11/IEC61643-11
Rated operating voltage Un：230V/400V
Number of poles：1P、1P+N、2P、3P、3P+N、4P
Experimental type：IClass I （T2）
Waveform：8/20us
Model：NYKU1- 10kA/NYKU1-20kA/NYKU1-40kA/NYKU1-60kA
Maximum discharge current Imax：10kA/20kA/40kA/60kA
Nominal discharge current In：5kA/10kA/20kA/30kA
Response time Ta：＜25ns
Maximum continuous operating voltage Uc（V）：275/320/385/460
Voltage protection level Up（kV）：≤0.8(275V)、≤1.2(320V)、≤1.2(385V)、≤1.2(460V)/≤1.0(275V)、≤1.2(320V)、≤1.4(385V)、≤1.6(460V)/≤1.2(275V)、≤1.4(320V)、≤1.6(385V)、≤2.0(460V)/≤1.5(275V)、≤1.8(320V)、≤1.8(385V)、≤2.2(460V)
Protection degree：IP20
Ambient temperature limit：-40℃～80℃
Installation method：35mm standard electrical guide rail mounted
Casing color：Light grey
-
Execution standard：GB/T18802.11/IEC61643-11
Rated operating voltage Un：230V/400V
Number of poles：1P、1P+N、2P、3P、3P+N、4P
Experimental type：Class II （T2）
Waveform：8/20us
Model：NYKU1- 80kA/NYKU1-100kA/NYKU1-120kA/NYKU1-160kA
Maximum discharge current Imax：80kA/100kA/120kA/160kA
Nominal discharge current In：40kA/50kA/60kA/80kA
Response time Ta：＜25ns
Maximum continuous operating voltage Uc（V）：275/320/385/420/460
Voltage protection level Up（KV）：≤0.8(275V)、≤1.2(320V)、≤1.2(385V)、≤1.2(460V)/≤2.4(385V)、≤2.5(420V)/≤2.5(385V)、≤2.65(420V)/≤3.0(385V)、≤3.2(420V)
Protection degree：IP20級
Ambient temperature limit：-40℃～80℃
Installation method：35mm standard electrical guide rail mounted
Casing color：Light grey
Selection table
-
Product code ：NYKU1: Surge Protector
Use category：I:Class T1
Maximum impulse current：15kA、25kA、50AkA
Number of poles：1P:1 pole、2P:2 pole、3P:3 pole、4P:4 pole
Maximum operating voltage：275V、320V、385V、440V、460V
Additional features：X:Remote signaling
Note:NYKU1-I series conventional discharge components are graphite clearance, of which NYKU1-I-15 can be made into two types of discharge components: chip and graphite.
Remote signaling function is optional for chip type, but not for stands for type. X means remote signaling function, C stands for chip.
-
Product code ：NYKU1: Surge Protector
Maximum discharge current ：10kA、20kA、40kA、60kA、80kA、100kA、120kA、160kA
Number of poles：1P:1 pole、1PN:1 pole+N、2P:2 pole、3P:3 pole、3PN:3 pole+N、4P:4 pole
Maximum operating voltage：275V、320V、385V、460V
Additional features：X:Remote signaling
