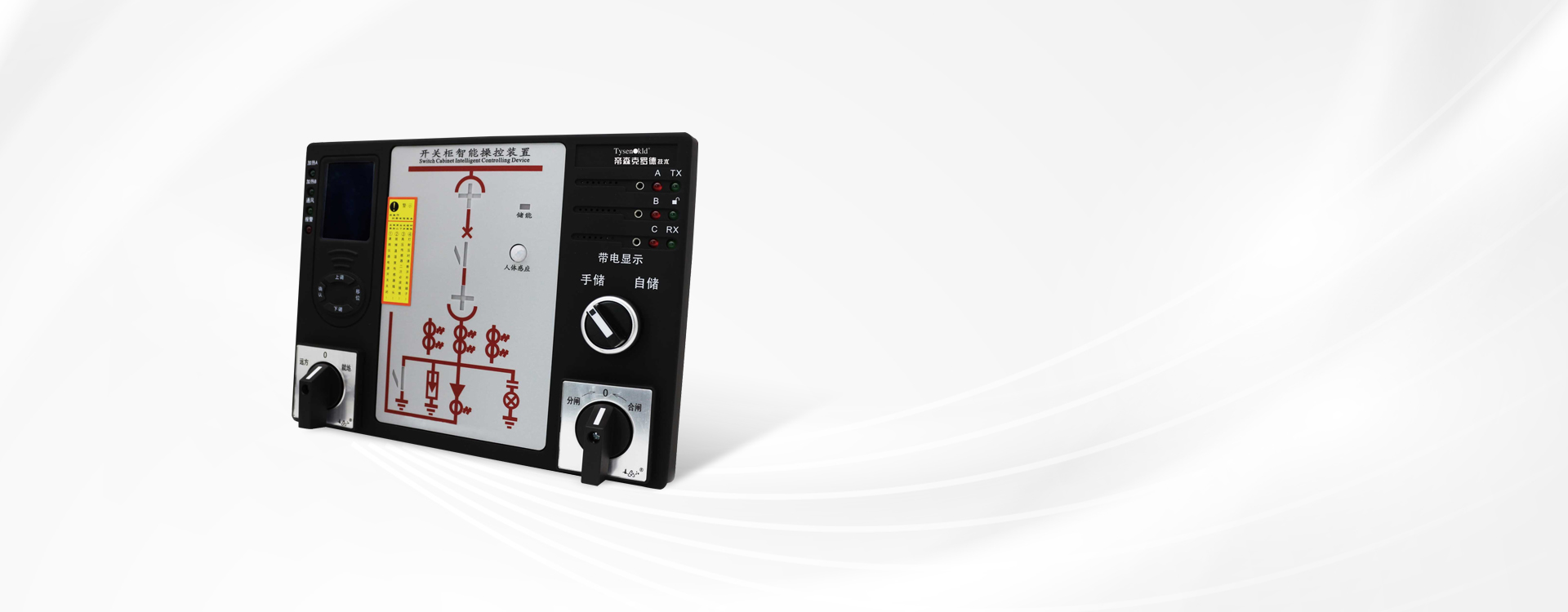

NPM10 Series
Intelligent Control Equipment
Intelligent
Fast
Safe
Comprehensive
PRODUCT OVERVIEW
NPM10 series product is a new type of powerful and diversified intelligent analog dynamic indication equipment designed for the control requirements of power switchgear. The product is suitable for 3-35KV indoor switchgear, middle-placed switchgear, handcart switchgear, fixed switchgear, ring network switchgear and other switchgears. It can replace the current primary circuit simulation, live display, automatic heating and dehumidification controller, which is a product that integrates several of functions, such as circuit breaker opening and closing status indication, energy storage indication, grounding switch indication, position indication and RS485 communication interface, etc.
PRODUCT CHARACTERITICS
Accurate judgment and quick feedback
The front end of the product can be configured with an isolation switch or its own isolation function to ensure that there are obvious line disconnection points to protect personal safety during maintenance.
Strong safety, reliability and stability
Equipped with the human body sensor cabinet lighting function, voice mistake proof prompt function, heating and load disconnection alarm function.
Powerful function, flexible customization
Adopts industrial-grade electronic components with unique anti-interference technology, which can provide highly customized service to find the most suitable product for each project.
High degree of intelligence
Designed in an integrated circuit with an advanced processing unit and digital sensor technology. Not only can it locally monitor the operation status of the high-voltage switchgear in real time, but also upload the data to the monitoring system through network technology, which helps the system to analyze the trend of various data of the switchgear, detect potential faults in time, and facilitate the intelligent development of the substation and distribution network.
Technical Parameters
| Function model | NMP10-KG | NMP10-KS | NMP10-KY |
| Dynamic analog diagram | ■ | ■ | ■ |
| Voice prompt | ■ | ■ | ■ |
| Live display and lock | ■ | ■ | ■ |
| Electric testing and phase verification | □ | □ | □ |
| Temperature and humidity fixed monitoring | ■ | —— | —— |
| Temperature and humidity digital display | —— | ■ | —— |
| Temperature and humidity LCD display | —— | —— | ■ |
| Opening and closing change-over switch | ■ | ■ | ■ |
| Local-remote change-over switch | ■ | ■ | ■ |
| Manual energy storage change-over switch | ■ | ■ | ■ |
| Lighting switch in switchgear | ■ | ■ | —— |
| Pre-opening and pre-closing indication | —— | ■ | ■ |
| Integrity indication of opening and closing circuit | —— | —— | ■ |
| Voltage value display of opening and closing circuit | —— | —— | ■ |
| Measurement display of main circuit current, voltage, power and other electrical parameters | —— | —— | □(Alternative) |
| Online temperature measurement of contacts and cable joints | —— | —— | |
| Human body sensor probe | □ | □ | ■ |
| RS485 communication | ■ | ■ | ■ |
| Load disconnection alarm | ■ | ■ | ■ |
| Hole size | 220x165mm | 220x165mm | 220x165mm |
Note:■ Standard configuration、□ Optional configuration、— Non-supported configuration
Selection table
| NMP10 | K | Y | Additional functions |
| Product code | Product category | Display mode | Additional functions |
| NMP10： Switchgear Indication and Manipulation Equipment |
K：witchgear intelligent control device Z：Switch status analog indicator |
S：Digital display Y：LCD display G：Without display |
D：Electric testing and phase verification P：Wireless temperature measurement C0：Data measurement F：Pre-opening and pre-closing indication S：Self-testing B：Independent locking power supply C：Independent locking output W：Over-temperature alarm T：Over-humidity alarm Z1：DC opening measurement Z2：DC closing measurement M：Analog output None：no addtional function |
Technical Parameters
-
Dynamic analog diagram：Standard configuration
Voice prompt：Standard configuration
Live display and lock：Standard configuration
Electric testing and phase verification：Optional configuration
Temperature and humidity fixed monitoring：Standard configuration
Temperature and humidity digital display ：None
Temperature and humidity LCD display：None
Opening and closing change-over switch：Standard configuration
Local-remote change-over switch：Standard configuration
Manual energy storage change-over switch：Standard configuration
Lighting switch in switchgear：Standard configuration
Pre-opening and pre-closing indication：None
Integrity indication of opening and closing circuit：None
Voltage value display of opening and closing circuit：None
Measurement display of main circuit current, voltage, power and other electrical parameters ：None
Online temperature measurement of contacts and cable joints：None
Human body sensor probe：Optional configuration
RS485 communication：Standard configuration
Load disconnection alarm：Standard configuration
Hole size：220x165mm
-
Dynamic analog diagram：Standard configuration
Voice prompt：Standard configuration
Live display and lock：Standard configuration
Electric testing and phase verification：Optional configuration
Temperature and humidity fixed monitoring：None
Temperature and humidity digital display ：Standard configuration
Temperature and humidity LCD display：None
Opening and closing change-over switch：Standard configuration
Local-remote change-over switch：Standard configuration
Manual energy storage change-over switch：Standard configuration
Lighting switch in switchgear：Standard configuration
Pre-opening and pre-closing indication：Standard configuration
Integrity indication of opening and closing circuit：None
Voltage value display of opening and closing circuit：None
Measurement display of main circuit current, voltage, power and other electrical parameters ：None
Online temperature measurement of contacts and cable joints：None
Human body sensor probe：Optional configuration
RS485 communication：Standard configuration
Load disconnection alarm：Standard configuration
Hole size：220x165mm
-
Dynamic analog diagram：Standard configuration
Voice prompt：Standard configuration
Live display and lock：Standard configuration
Electric testing and phase verification：Optional configuration
Temperature and humidity fixed monitoring：None
Temperature and humidity digital display ：None
Temperature and humidity LCD display：Standard configuration
Opening and closing change-over switch：Standard configuration
Local-remote change-over switch：Standard configuration
Manual energy storage change-over switch：Standard configuration
Lighting switch in switchgear：None
Pre-opening and pre-closing indication：Standard configuration
Integrity indication of opening and closing circuit：Standard configuration
Voltage value display of opening and closing circuit：Standard configuration
Measurement display of main circuit current, voltage, power and other electrical parameters ：Optional configuration(Alternative)
Online temperature measurement of contacts and cable joints：Optional configuration(Alternative)
Human body sensor probe：Standard configuration
RS485 communication：Standard configuration
Load disconnection alarm：Standard configuration
Hole size：220x165mm
注：■Standard configuration、□ Optional configuration、— Non-supported configuration
Selection table
-
Product code ：NMP10:Switchgear Indication and Manipulation Equipment
Product category：K:Switchgear intelligent control device、Z:Switch status analog indicator
Display mode：S:Digital display、Y:LCD display、G:Without display
Additional features：D:Electric testing and phase verification、P:Wireless temperature measurement、C0:Data measurement、F:Pre-opening and pre-closing indication、S:Self-testing、B:Independent locking power supply、C:Independent locking output、W:Over-temperature alarm、T:Over-humidity alarm、Z1:DC opening measurement、Z2:DC closing measurement 、M:Analog output、None:no addtional function
