NPM10 Series
Switch Status Analog Indicator
Intelligent
Fast
Safe
Comprehensive
PRODUCT OVERVIEW

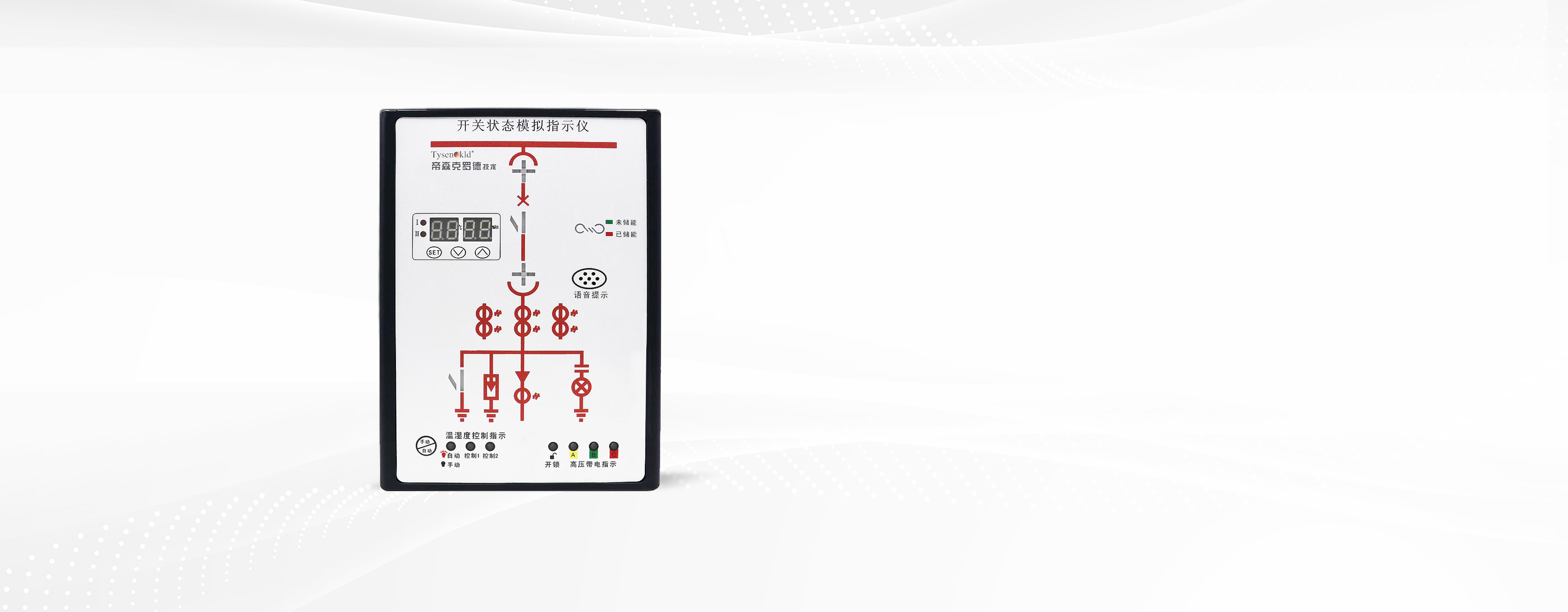

NPM10 series switch status indicator is a new type of multi-functional, intelligent, and dynamic analog indicator device developed and designed according to the current technological development of medium-voltage system switchgear. It integrates the primary circuit analog diagram, switch status, circuit breaker position, grounding switch position, spring energy storage status, high-voltage live indication, high-voltage live locking, and automatic (manual) heating and dehumidifying control, temperature control and other multi-functions. It is equipped in the switchgear by adopting the integrated structure, which simplifies the design of switchgear's panel structure, beautifies switchgear’s panel layout, and improves the indication function and safety of the switching status.
PRODUCT CHARACTERITICS
- ● It has the functions of dynamic primary analog diagram, live display and lock, temperature and humidity control.
- ● Supports human body sensing, disconnection alarm, voice mistake proof prompt and other functions.
- ● It has RS485 communication interface and supports Modbus-RTU communication protocol.
Technical Parameters
| Function model | NPM10-ZG | NPM10-ZS |
| Dynamic analog diagram | ■ | ■ |
| Voice mistake proof prompt | —— | ■ |
| Live display and lock | ■ | ■ |
| Electric testing and phase verification | □ | □ |
| Temperature and humidity fixed control | ■ | ■ |
| Temperature and humidity digital display and control | —— | ■ |
| RS485 communication | ■ | ■ |
| Disconnection alarm | —— | ■ |
| Hole size | 119x179mm | 130x195mm |
Note: If functions of fault power failure, over-temperature or over-humidity alarm function are required, please select the electric testing and phase verification function.■ Standard configuration、 □ Optional configuration、 — Non-supported configuration
Selection table
| NMP10 | K | Y | Additional functions |
| Product code | Product category | Display mode | Additional functions |
| NMP10： Switchgear Indication and Manipulation Equipment |
K：witchgear intelligent control device Z：Switch status analog indicator |
S：Digital display Y：LCD display G：Without display |
D：Electric testing and phase verification P：Wireless temperature measurement C0：Data measurement F：Pre-opening and pre-closing indication S：Self-testing B：Independent locking power supply C：Independent locking output W：Over-temperature alarm T：Over-humidity alarm Z1：DC opening measurement Z2：DC closing measurement M：Analog output None：no addtional function |
Technical Parameters
-
Dynamic analog diagram：Standard configuration
Voice mistake proof prompt：None
Live display and lock：Standard configuration
Electric testing and phase verification：Optional configuration
Temperature and humidity fixed control：Standard configuration
Temperature and humidity digital display and control：None
RS485 communication：Standard configuration
Disconnection alarm：None
Hole size：119x179mm
-
Dynamic analog diagram：Standard configuration
Voice mistake proof prompt：Standard configuration
Live display and lock：Standard configuration
Electric testing and phase verification：Optional configuration
Temperature and humidity fixed control：Standard configuration
Temperature and humidity digital display and control：Standard configuration
RS485 communication：Standard configuration
Disconnection alarm：Standard configuration
Hole size：130x195mm
Note: If functions of fault power failure, over-temperature or over-humidity alarm function are required, please select the electric testing and phase verification function. ■ Standard configuration 、 □ Optional configuration、 — Non-supported configuration
Selection table
-
Product code：NMP10: Switchgear Indication and Manipulation Equipment
Product category： K: Switchgear intelligent control device、 Z: Switch status ana
Display mode：S: Digital display Y: LCD display G: Without display
附加Function：D: Electric testing and phase verification ；P: Wireless temperature measurement；C0: Data measurement；F: Pre-opening and pre-closing indication ；S: Self-testing；B: Independent locking power supply ；C: Independent locking output；W: Over-temperature alarm；T: Over-humidity alarm；Z1: DC opening measurement；Z2: DC closing measurement；M: Analog output ；None: no addtional function
