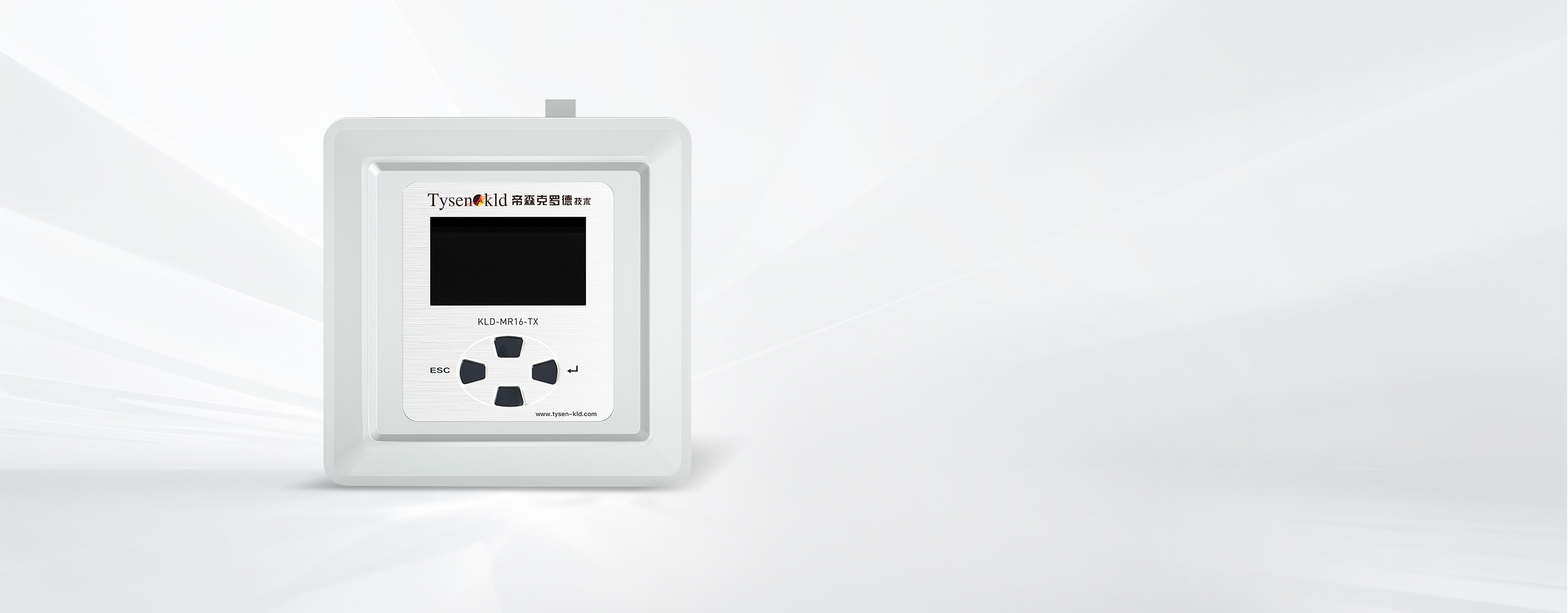

KLD-MR Series
Power Factor Controller
Power factor controllers provide effective reactive power compensation, measurement and monitoring of the power grid, which can be applied to the automatic control of low-voltage reactive power compensation systems.
Power factor is an important criterion for the assessment of electricity efficiency. Power factor correction can improve power quality, and its function, control and safety features are highly valued by many users.
KLD-MR series power factor controller calculates the corresponding active and reactive power according to the current and voltage collected in the power distribution system, and ensures that the power factor can be adjusted in a short period of time with a minimum number of switching cycles; the control parameters can be adjusted individually at any time even during the operation.
The power factor controller quickly identifies the system demand for reactive power. If the reactive power demand coefficient exceeds the threshold, the appropriate combination of compensation circuits will be used according to the configuration requirements of the system and the power factor controller. Intelligent power factor controllers are able to monitor the data related to the power of the equipment and distribution system, take protective measures accordingly in the case of abnormal power parameters, and shut down the operation of the equipment or compensation circuits temporarily or permanently as required.

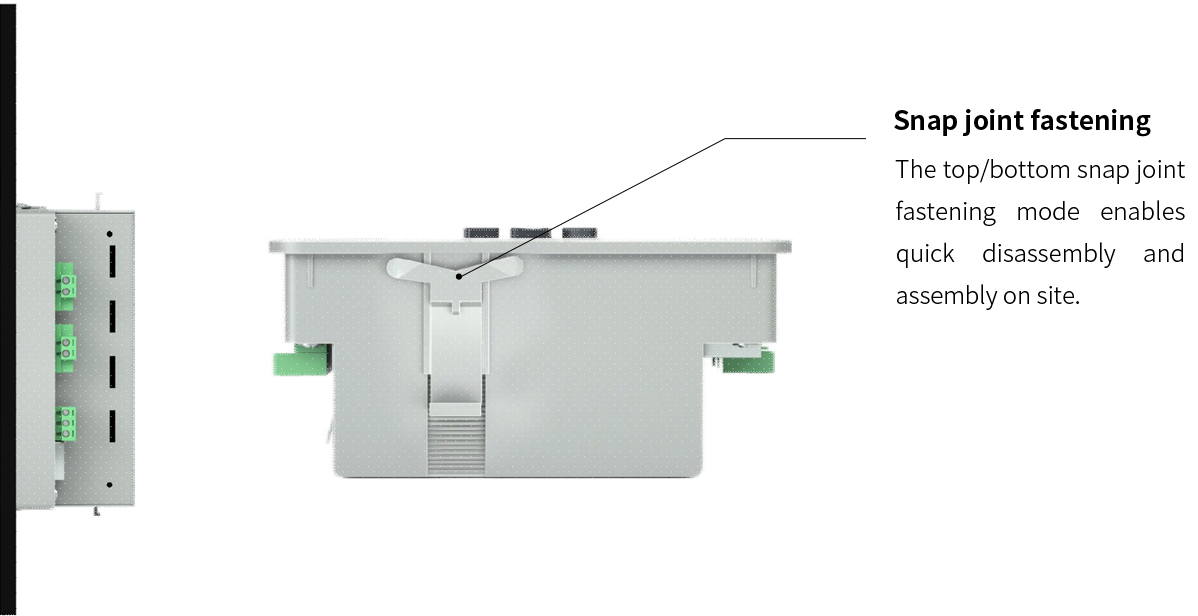

We have designed extremely convenient snap joints on the top and bottom of the controller for convenience.
When a parameter exceeds the limit, the controller will gradually switch off, and the alarm information can be checked in the "Fault Alarm" interface; the user only needs to check the relevant parameters and adjusts the reasonable limit, and the loop will be put into operation after the power parameters of distribution system return to normal.

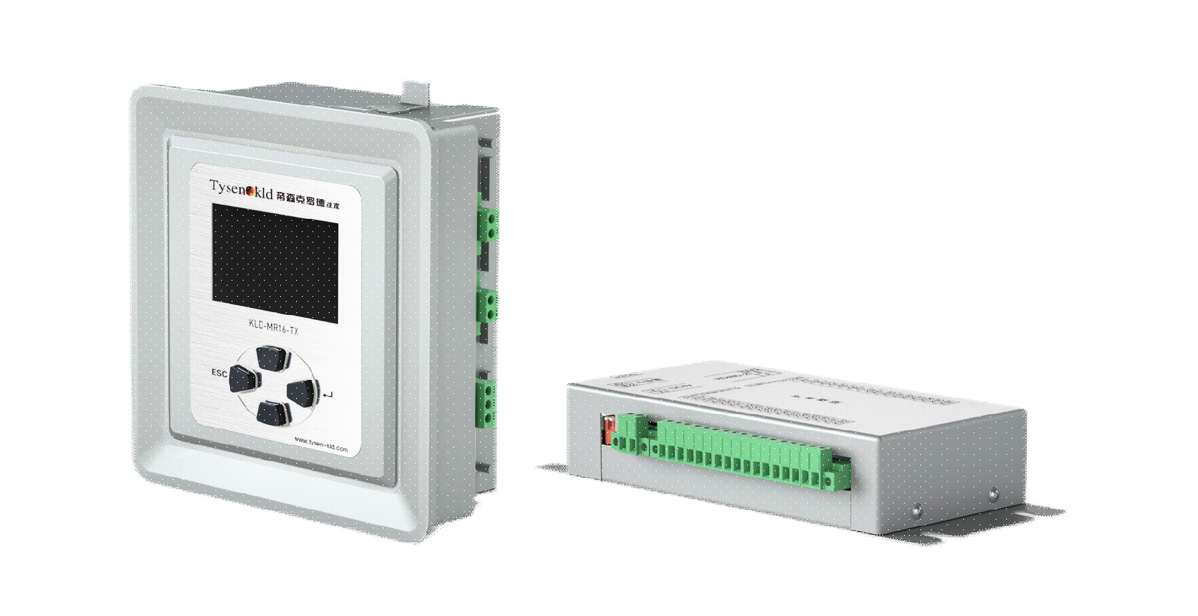

When there are a large number of loops in the compensation controller, it can be matched with MR(T) 32-channel controller expansion module to expand the control terminals of the controller through communication.
| Operation voltage | AC220V/380V，45-65Hz |
| Display | Current I, Voltage U, Power factor cosφ, Active power P, Reactive power Q, Harmonic THD, etc. |
| Number of output channels | 16 channels |
| Interface | RS485, RJ45, Modbus Communication protocol |
| Connection | Pluggable terminal |
| Housing | Front: resin structure Rear: metal structure |
| Operating temperature | -25℃～+70℃ |
| Storage temperature | -40℃～+85℃ |
| Ambient humidity | 0%~95%, no humidity and condensing |
| Protection degree | IP40 for front panel, changed protection degree can be customized |
| Case size | 144mm(L) x144mm(W)x65mm(D) |
| Execution standard | EN61010-1/IEC 61610-1，EN 61326/IEC 61326 |
| Model | Application | Number of controller paths | AC voltage（V） | Over-temperature protection | Hole size（mm） |
| KLD-MR16-TX | Combined complementary switching contactor control | 16 | 380 | Provided | 138x138 |
| KLD-MR16-H | Mixed complementary switching contactor control | 16 | 220 | Provided | 138x138 |
| KLD-MRT16 | Combined/Mixed complementary switching thyristor control | 16 | 220 | Provided | 138x138 |
| KLD-MR16-R | Intelligent Capacitor Switching Control | 64 | 220 | Provided | 138x138 |
Operation voltage：AC220V/380V，45-65Hz
Display：Current I, Voltage U, Power factor cosφ, Active power P, Reactive power Q, Harmonic THD, etc.
Number of output channels：16 channels
Interface：RS485, RJ45, Modbus Communication protocol
Connection：Pluggable terminal
Housing：Front: resin structure Rear: metal structure
Operating temperature：-25℃～+70℃
Storage temperature：-40℃～+85℃
Ambient humidity：0%~95%, no humidity and condensing
Protection degree：IP40 for front panel, changed protection degree can be customized
Case size：144mm(L) x144mm(W)x65mm(D)
Execution standard：EN61010-1/IEC 61610-1，EN 61326/IEC 61326
Application：Combined complementary switching contactor control
Number of controller paths：16
AC voltage（V）：380
Over-temperature protection：Provided
Hole size（mm）：138x138
Application：Combined complementary switching contactor control
Number of controller paths：16
AC voltage（V）：220
Over-temperature protection：Provided
Hole size（mm）：138x138
Application：Combined/Mixed complementary switching thyristor control
Number of controller paths：16
AC voltage（V）：220
Over-temperature protection：Provided
Hole size（mm）：138x138
Application：Intelligent Capacitor Switching Control
Number of controller paths：64
AC voltage（V）：220
Over-temperature protection：Provided
Hole size（mm）：138x138
