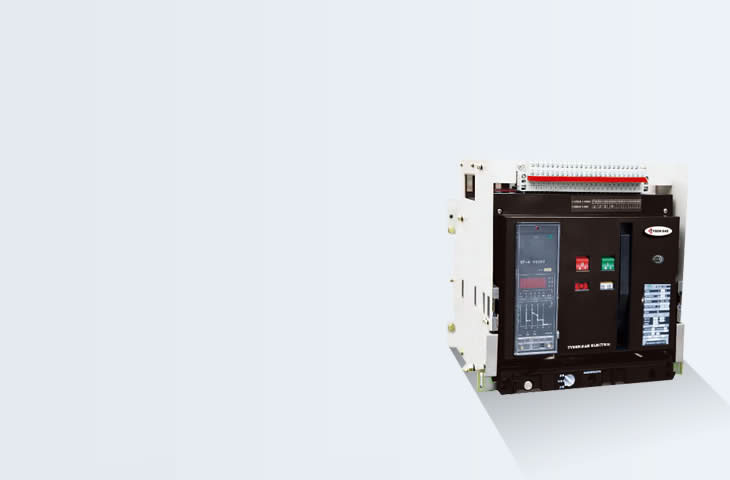

NYKW2 series intelligent air circuit breaker

It is mainly used to control and protect LV distribution network. which is normally installed in low-voltage power distribution cabinet for overall protection. Circuit breaker of no more than 1000A rated current could satisfy frequent start of electric motors.

• AC rated current 630A~6,300A;
• Short circuit breaking capacity 80kA~120kA(effective values);
• Rated operating voltage AC690V and below;
• 3-pole circuit breaker and 4-pole circuit breaker;
• Drawer type circuit breaker and fixed type circuit breaker;
• Reversible incoming installation;
• Various intelligent controllers to realize different functions;
• Isolation function, sign is"";
• Carrying out IEC60947-2 and GB14048.2-2008 standards;
• This circuit breaker has gained China Compulsion Certification "CCC".

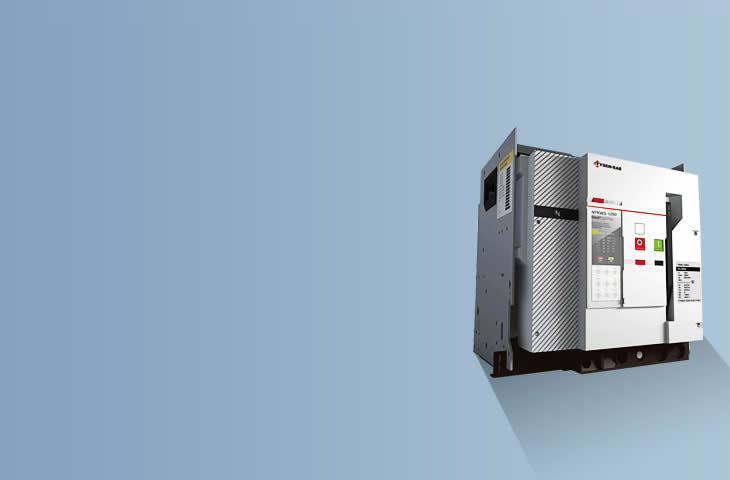

NYKW3 series intelligent air circuit breaker

• NYKW3-1250 series intelligent air circuit breaker (hereinafter referred to as circuit breaker) has features of compact structure, small volume, high reliability and zero arcing, etc.. Rated insulation voltage of circuit breaker is 690V, applying to AC 50Hz, 400V rated working voltage and 200A-1250A rated current. It’s mainly used in distribution network to distribute electricity, protect circuit and power supply equipment from over-load, under-voltage, short circuit and single-phase grounding fault hazards.
• The circuit breaker is a three-dimensional arrangement, contact system of every phase is closed inside insulation base, forming a small independent chamber. These chambers constitute main circuit of circuit breaker.
• Technical performance of circuit breaker conforms to standards of GB14048.2 Low-Voltage Switch Equipment and Controlling Equipment Low-Voltage Circuit Breaker and IEC60947-2 Low-Voltage Switch Equipment and Controlling Equipment Secondary Low-Voltage Circuit Breaker.
