Product Overview

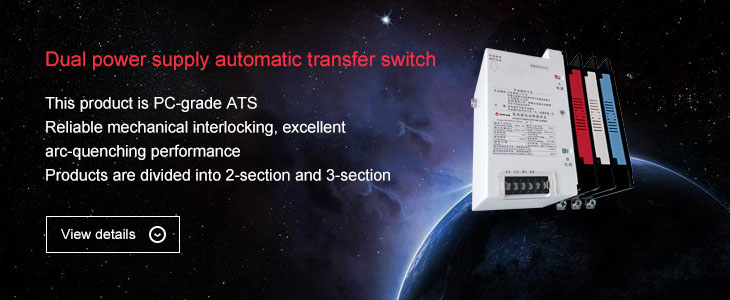

- NYKP2 series double power supply switch apparatus belongs to PC grade, it’s divided into NYKP2-2 and NYKP2-N3.
- NYKP2-2 is two-section automatic transfer switch, after switch connects to shifting signal, it shall shift from one power source to the other from the middle breaking position without any stop, current size is 20A-500A.
- NYKP2-N3 is three-section automatic transfer switch, when this switch connects to shifting signal, it can immediately (or through a preset delayed time) shift from one power supply to the other, or shift from one power supply to middle breaking position disconnecting with any other power supply. Current size is 20A-800A.
Product Features
- Reliable mechanical interlock: Unique eccentric selection mechanism ensures that there’s only one group of power supply, absolutely without two groups of power supply to connect to load simultaneously.
- Good arc extinction performance: All types of abnormal electric arc shall be off reliably, electric arc continuity time is short, contact wearing is less.
- Faster switching speed: Rapidly switch between two groups of power supply key: normal power supply and spare power supply, User also can set switching delay time of ATS equipped with controller.
- Simple structure and small volume: It has reliable work, lower fault rate, convenient installation, use and maintenance. When repairing it, please slowly rotate handles for operation, so as to find out and remove the fault, NYKP2 series ATS belongs to PC grade, comparing to traditional CB grade products.
- OFF position: NYKP2-N3 type three-section transfer switch can be shifted from power-on status to OFF for a short stay and not connecting to any other power source, bringing convenience to User, while NYKP2-2 type two-section cannot stay at this OFF position.
Main Specifications and Technical Parameters
NYKP2-2 two-section transfer switch parameters
| Type | NYKP2-2 | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Insulation voltage | AC800V | |||||||||||||
| Impulse withstand voltage | 8KV | |||||||||||||
| Rated voltage | AC400V(AC660V/690V、DC125V/250V) | |||||||||||||
| Rated current (A) | 20、40、63 | 80、100、125 | 160、200、225、250 | 350、400、500 | ||||||||||
| Number of input | Double input | |||||||||||||
| Wiring method | Front-panel | |||||||||||||
| Number of poles | 2P | 3P | 4P | 2P | 3P | 4P | 2P | 3P | 4P | 2P | 3P | 4P | ||
| Weight (kg) | 4.5 | 5 | 5.5 | 5 | 6.3 | 6.8 | 6 | 6.6 | 7.3 | 11 | 15 | 18 | ||
| Operating current (A) | DC110V/125V | 6 | 6 | 8 | 6 | 6 | 8 | 6 | 8 | 10 | 10 | 10 | 14 | |
| AC100V/110V | 6 | 6 | 8 | 6 | 6 | 8 | 6 | 8 | 10 | 10 | 10 | 14 | ||
| AC200V/220V/230V | 3 | 3 | 4 | 3 | 3 | 4 | 3 | 4 | 5 | 5 | 5 | 7 | ||
| Performance | Short-time withstand current | 10KA | 15KA | 20KA | ||||||||||
| Rated limited short circuit current (fuse for protection) | 50KA | 65KA | ||||||||||||
| Rated limited short circuit current (circuit breaker for protection) | 100KA | 120KA | ||||||||||||
| Making and breaking capacity | AC-33B(10Ie making .10Ie)cosφ=0.35 (at Ie≤100A, cosφ=0.45) |
|||||||||||||
| Time transfer | A source → B source | ≤0.2s | ||||||||||||
| B source → A source | ||||||||||||||
| Lifetime | Electrical lifetime is 6,000 and mechanical lifetime is 20,000 | |||||||||||||
| Operation cycle frequency | 120 times/h | |||||||||||||
| Auxiliary switch | A and B power source side are 2 normal open and 2 normal close; switch capacity AC: 110V5A/AC220V3A DC200V0.2 主站蜘蛛池模板： 亚洲自拍偷拍一区二区三区| 2020国产欧洲精品网站| 国产精品一在线观看| 国产精品国产精品偷麻豆| 久久综合色一综合色88欧美| 久久精产国品一二三产品| 亚洲一区精品伊人久久| 久久亚洲AV成人网站玖玖| 无码人妻斩一区二区三区| gogo无码大胆啪啪艺术| 中文字幕国产在线精品| 国产成人亚洲精品在线看| 国产激情一区二区三区在线| 国产台湾黄色av一区二区| 日韩av一区二区三区不卡| 国产一区二区在线激情往| 无码国产精品一区二区av| 无码无需播放器av网站| 日本熟妇浓毛| 日本中文字幕乱码免费| 狠狠色噜噜狠狠狠狠av不卡| 97精品伊人久久大香线蕉APP | 无码高潮爽到爆的喷水视频app| 亚洲精品一区二区三区小| 高清日韩一区二区三区视频| 国产熟女精品一区二区三区| 国产伦一区二区三区视频| 国产精品男女午夜福利片| 亚洲av成人网在线观看| 国产成人自拍小视频在线| 中文字幕日韩精品有码| 日韩精品久久久肉伦网站| 污网站在线观看视频| 欧美一区二区三区欧美日韩亚洲 | 国产亚洲精品aaaa片app| 内射老阿姨1区2区3区4区| 狠狠综合久久av一区二| 亚洲 欧美 唯美 国产 伦 综合| 久久国产精品老人性| 国产无遮挡又黄又爽不要vip软件 国产成人精品一区二区秒拍1o | 黄色三级亚洲男人的天堂| | |||||||||||||
